1
Low power, programmable waveform generator.
Generates sine, triangular, and square wave outputs.
28-bit frequency registers for precise tuning.
Compatible with various microprocessors and DSPs.
Serial interface operates up to 40 MHz.
Power supply range: 2.3 V to 5.5 V.
Power-down function minimizes current consumption.
Average Rating out of 5:
Price Range: $19.99
Color: 5pcs
2
Generates frequencies from <8KHz to 160MHz.
I2C configurable for versatile applications.
Precision 25MHz crystal reference included.
Outputs 3Vpp for various connectivity options.
Ideal for replacing traditional oscillators and PLLs.
Compact breakout board for easy prototyping.
Supports RF work with optional SMA connector.
Average Rating out of 5:
Price Range: $7.99
3
8-bit serial-in, parallel-out shift register.
Wide operating voltage range: 2V to 6V.
High-current 3-state outputs drive 15 LSTTL loads.
Low power consumption: 80 µA (max) ICC.
Low input current: 1 µA (max).
Pack of 4 for multiple applications.
Ideal for digital circuit projects and prototypes.
Average Rating out of 5:
Price Range: $7.35
4
Generates frequencies from <8KHz to 150+ MHz.
Supports 3.3V to 5V power supply.
I2C controlled for easy integration with Arduino.
Includes precision 25MHz crystal reference.
Output options: breadboard header or SMA connector.
Internal PLL and dividers for frequency stability.
Ideal for RF applications and signal generation.
Average Rating out of 5:
Price Range: $7.99
5

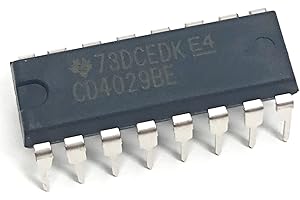

Pack of 10 CMOS Up/Down Counter ICs
Medium-speed operation up to 8 MHz
Supports binary and decade counting modes
Preset enable and jam inputs included
Standardized symmetrical output characteristics
Ideal for frequency synthesizers and conversions
100% tested for quiescent current reliability
Average Rating out of 5:
Price Range: $12.49
6

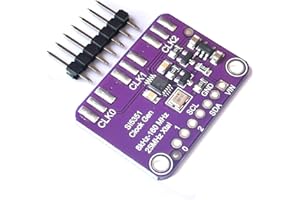

Generates frequencies from 8KHz to 160MHz.
Compatible with Arduino and I2C devices.
Three independent outputs for different frequencies.
Includes precision 25MHz crystal reference.
Powered by 3V to 5V DC supply.
Easy integration with level shifting circuitry.
Compact breakout board design for convenience.
Price Range: $6.99
7

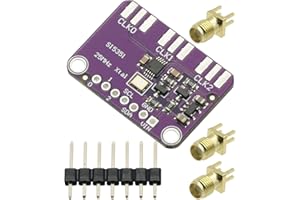

Generates frequencies from 8KHz to 160MHz.
High precision with 25MHz crystal reference.
Compatible with 3.3V and 5V systems.
I2C configurable for easy setup and control.
Delivers 3Vpp square wave signals efficiently.
Ideal for Arduino and STM32 projects.
Flexible output options for prototyping needs.
Price Range: $12.95
8

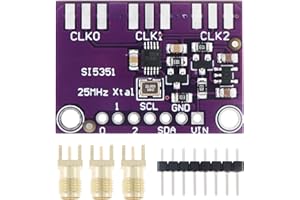

High-frequency output: 8KHz to 160MHz.
Three independent output ports for flexibility.
Programmable via I2C interface for user convenience.
Precision 25MHz reference crystal ensures accuracy.
Compatible with 3.3V and 5V TTL logic.
Ideal for replacing oscillators and crystal circuits.
Low error rate: 0ppm at each output.
Average Rating out of 5:
Price Range: 0
9

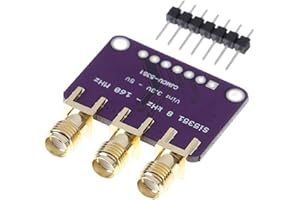

Generates frequencies from 8KHz to 160MHz.
I2C configurable for versatile signal generation.
Precision 25MHz crystal reference ensures accuracy.
Three independent channels for multiple applications.
Outputs 3Vpp via headers or SMA connector.
Operates at 3-5VDC for wide compatibility.
Ideal for RF applications and prototypes.
Average Rating out of 5:
Price Range: $15.99
10
Generates frequencies from <8KHz to 150+ MHz.
Precision 25MHz crystal reference for accurate output.
I2C configurable for easy integration with devices.
Ideal for replacing traditional oscillators and PLLs.
Outputs 3Vpp through header or optional SMA connector.
Cost-effective solution for various electronic applications.
Suitable for Arduino and other microcontroller projects.
Price Range: 0
11
Medium-speed operation up to 8 MHz.
Parallel clocking for high-speed output response.
Maximum input current of 1 µA at 18 V.
Supports binary or decade up/down counting.
5-V, 10-V, and 15-V parametric ratings.
Ideal for programmable counting and frequency synthesizers.
Fully tested for quiescent current at 20 V.
Average Rating out of 5:
Price Range: $8.98
12

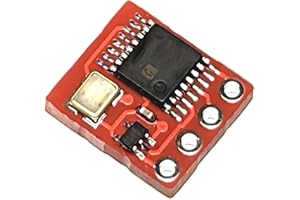

High precision 1Hz clock generator for projects.
3.8ppm accuracy, less than 2 minutes yearly error.
Compact size: 10 x 11 mm for easy integration.
Operating voltage range: 3-5V for versatility.
Output current capability of +/- 24mA.
Ideal for DIY clocks and timer applications.
Reliable time base for precise timing solutions.
Price Range: $2.93
13

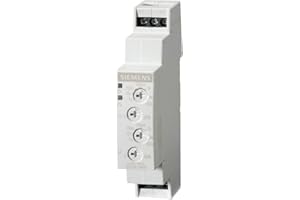

Adjustable time settings from 0.05s to 100h.
Compatible with 12-240V AC/DC control voltage.
Features one changeover (CO) contact for flexibility.
Ideal for various timing applications and projects.
High-quality construction ensures durability and reliability.
Easy installation and setup for user convenience.
Manufactured in the United States for quality assurance.
Price Range: 0
