Top NOR Logic Gates and Applications

The best NOR Logic Gates includes TQDLYKHS CD4001 (15Pcs) NOR Gate IC Chip, Big CMOS Logic ICs Assortment (120 pcs), Xytronic CD4072 Dual 4-Input OR Gates (10 Pack) and many others as mentioned below.

1

TQDLYKHS CD4001 (15Pcs) NOR Gate IC Chip

Brand: TQDLYKHS
  • 15 pieces of CD4001 NOR Gate ICs.
  • DIP-14 package for easy integration.
  • High-quality CMOS technology for reliability.
  • Randomly sent part numbers provided.
  • Brand new condition directly from manufacturer.
  • Ideal for various electronic projects.
  • Verify compatibility with existing components before purchase.
  • Average Rating out of 5:
  • Price Range: $8.95

Check Pricing

Price: $8.95
2

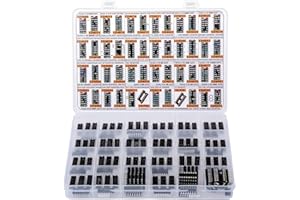

Big CMOS Logic ICs Assortment (120 pcs)

  • Includes 120 CMOS logic ICs assortment.
  • 46 different types of logic ICs available.
  • Comprehensive selection for various electronic projects.
  • High-quality components for reliable performance.
  • Easy organization with included assortment box.
  • Perfect for hobbyists and engineers alike.
  • Includes DIP sockets for convenient installation.
  • Average Rating out of 5:
  • Price Range: $49.80

Check Pricing

Price: $49.80
3

Xytronic CD4072 Dual 4-Input OR Gates (10 Pack)

Brand: Xytronic
  • Dual 4-input OR gates for versatile applications.
  • Includes 10 gates in each pack for convenience.
  • Fast propagation delay of 250 nanoseconds.
  • Reliable logic circuit type for efficient performance.
  • Ideal for various electronic project designs.
  • Manufactured in the United States for quality assurance.
  • Compatible with standard electronic components and systems.
  • Price Range: $10.85

Check Pricing

Price: $10.85
4

Gump's Grocery 10PCS 74HC32 OR Gates

Brand: Gump's grocery
  • Includes 10 pieces for versatile applications.
  • High-speed Si-gate CMOS technology for efficiency.
  • Pin compatible with low power Schottky TTL.
  • Quadruple 2-input OR gates in DIP-14 package.
  • Compliant with JEDEC standard no. 7A.
  • Ideal for various digital circuit designs.
  • Standard ICC category for reliable performance.
  • Average Rating out of 5:
  • Price Range: 0

Check Pricing

Price: 0
5

Juried Engineering CD4043BE Quad NOR Latch (Pack of 10)

Brand: Juried Engineering
  • Quad CMOS NOR latches for versatile applications.
  • Separate SET and RESET inputs for each latch.
  • 3-state outputs with common ENABLE control.
  • Wide voltage ratings: 5V, 10V, 15V.
  • Standardized output characteristics for reliable performance.
  • Ideal for holding registers and digital logic.
  • 100% tested for quiescent current efficiency.
  • Price Range: $12.19

Check Pricing

Price: $12.19
6

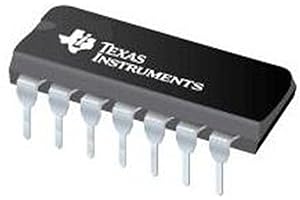

Texas Instruments 74LS86AN XOR Gate (Pack of 10)

Brand: Texas Instruments
  • High-speed 4-element XOR gate functionality
  • Commercial grade bipolar semiconductor technology
  • Compact 14-pin plastic DIP package
  • Ideal for digital logic applications
  • Low propagation delay for fast switching
  • Comes in a pack of 10 units
  • Reliable performance in various electronic circuits
  • Average Rating out of 5:
  • Price Range: $5.50

Check Pricing

Price: $5.50
7

Juried Engineering CD4001BE Quad NOR Gate (5-Pack)

Brand: Juried Engineering
  • Quad 2-input NOR gate configuration.
  • Propagation delay time: 60 ns (typical).
  • Buffered inputs and outputs for reliability.
  • Standardized symmetrical output characteristics.
  • 100% tested for maximum quiescent current.
  • Parametric ratings: 5V, 10V, and 15V.
  • Pack of 5 for convenience and savings.
  • Average Rating out of 5:
  • Price Range: $8.49
  • Color: Black

Check Pricing

Price: $8.49
8

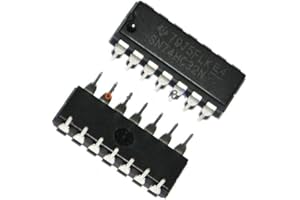

Juried Engineering SN74HC02N Quad 2-Input NOR IC

Brand: Juried Engineering
  • Quad 2-input NOR gates in a compact DIP-14 package.
  • Wide operating voltage range: 2V to 6V.
  • ±4 mA output drive at 5V for reliable performance.
  • Low power consumption: maximum ICC of 20 µA.
  • Typical propagation delay time: 8 ns for fast switching.
  • Can drive up to 10 LSTTL loads effectively.
  • Ideal for breadboard-friendly prototyping and applications.
  • Price Range: $12.49

Check Pricing

Price: $12.49
9

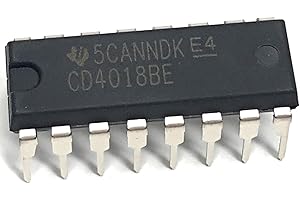

CD4018BE Divide-by-N Counter IC (5-Pack)

Brand: Juried Engineering
  • Divide-by-N counter for flexible frequency division.
  • Medium speed operation up to 10 MHz.
  • Fully static operation for reliable performance.
  • Tested for quiescent current at 20 V.
  • Standardized output characteristics for consistency.
  • Compatible with 5V, 10V, and 15V systems.
  • Pack of 5 for cost-effective bulk usage.
  • Average Rating out of 5:
  • Price Range: $8.49

Check Pricing

Price: $8.49
10

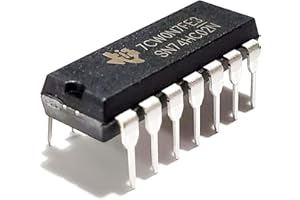

Juried Engineering SN74HC02N Quad NOR Gates (Pack of 5)

Brand: Juried Engineering
  • Quad 2-input positive-NOR gate configuration
  • Packed in a convenient set of 5
  • Wide voltage range: 2V to 6V
  • ±4-mA output drive at 5V
  • Low power consumption: Max ICC 20 µA
  • Fast switching: Typical tpd = 8 ns
  • Breadboard-friendly DIP-14 package
  • Average Rating out of 5:
  • Price Range: $8.98

Check Pricing

Price: $8.98
11

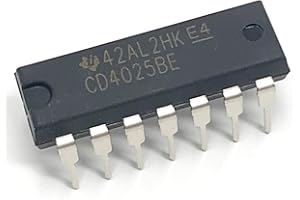

CD4025 Triple 3-Input NOR Gates 10-Pack

Brand: Juried Engineering
  • Triple 3-input NOR gate configuration.
  • 10-pack for convenient bulk purchasing.
  • Propagation delay time of 60 ns (typical).
  • Buffered inputs and outputs for stability.
  • Max input current of 1 µA at 18 V.
  • Meets JEDEC Tentative Standard No. 13B specifications.
  • Compatible with breadboard for easy prototyping.
  • Price Range: $11.49

Check Pricing

Price: $11.49
12

Juried Engineering SN74HC02 Quad 2-Input NOR Gate

Brand: Juried Engineering
  • Quad 2-input positive NOR gate configuration.
  • Compatible with breadboards for easy prototyping.
  • Operates within 2 V to 6 V voltage range.
  • Drives up to 10 LSTTL loads efficiently.
  • Low power consumption with 20 µA maximum ICC.
  • Fast switching with typical tpd of 8 ns.
  • Low input current of 1 µA maximum.
  • Price Range: $6.97

Check Pricing

Price: $6.97
13

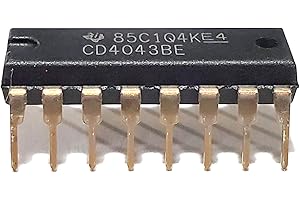

Juried Engineering CD4043 Quad NOR Latch IC

Brand: Juried Engineering
  • Quad cross-coupled 3-state CMOS NOR latches.
  • Separate Q outputs for each latch.
  • Individual SET and RESET inputs available.
  • 3-state outputs with common ENABLE functionality.
  • Compatible with 5V, 10V, and 15V systems.
  • Meets JEDEC Tentative Standard No. 13B.
  • Ideal for digital logic and storage applications.
  • Price Range: $6.97

Check Pricing

Price: $6.97
14

Juried Engineering CD4025 Triple NOR Gate (20 Pack)

Brand: Juried Engineering
  • Triple 3-input NOR gate configuration.
  • Buffered inputs and outputs for reliable performance.
  • Propagation delay time of 60 ns (typical).
  • Maximum input current of 1 µA at 18 V.
  • Noise margin up to 2.5 V at higher VDD.
  • Pack of 20 for convenient bulk use.
  • Breadboard-friendly DIP-14 package design.
  • Price Range: $21.98

Check Pricing

Price: $21.98
15

Juried Engineering CD4025 Triple 3-Input NOR Gate IC

Brand: Juried Engineering
  • Triple 3-input NOR gate configuration.
  • Pack of five integrated circuits.
  • Buffered inputs and outputs for stability.
  • Propagation delay time of 60 ns typical.
  • Maximum input current of 1 µA at 18 V.
  • Noise margin of 1 V to 2.5 V.
  • Complies with JEDEC specifications for CMOS devices.
  • Price Range: $8.98

Check Pricing

Price: $8.98
